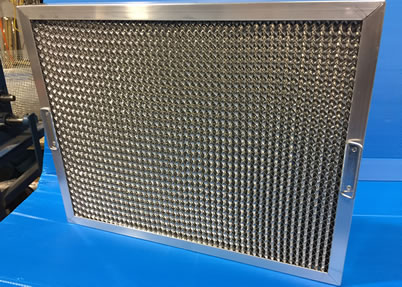

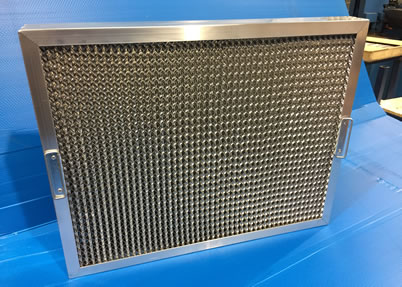

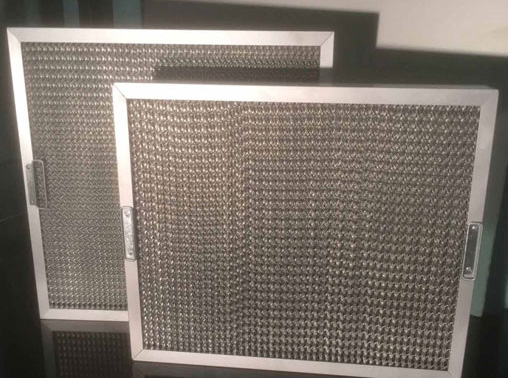

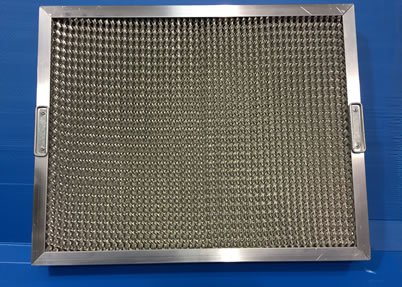

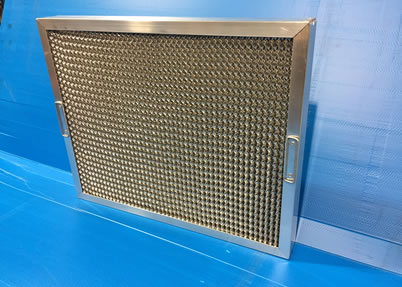

Honeycomb Filters
- Australian Made. Filters Made in Melbourne.
- Filters are made from Robust Aluminium Extruded Frame.
- Filters Made To Any Size.

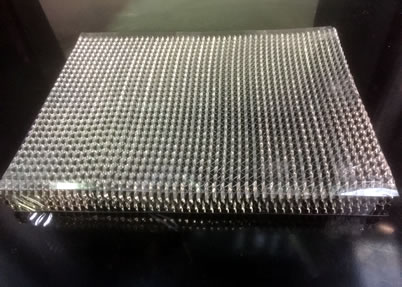

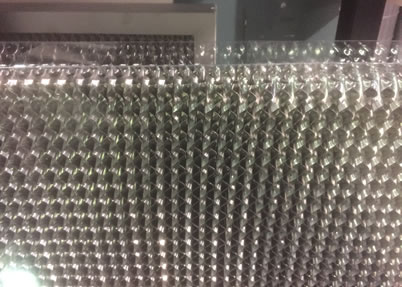

- Inserts are made from Aluminium Coil crimped to herringbone honeycomb pattern.
- Galvanised Retractable Handles.
- Restaurant owners and businesses that wash filters can replace damaged filters and save buying new filters.
- Standard sizes:
Part Number Dimensions (m) TF01 495 x 394 x 50 TF02 495 x 495 x 50 TF03 622 x 394 x 50 TF04 622 x 495 x 50 TF05 749 x 495 x 50 TF06 597 x 597 x 50 TF07 455 x 380 x 50
- Honeycomb Grease Filters soon to be made from Stainless Steel. Please call to confirm availability.
- Performance Data Guide Prediction.
Size 394 x 495 x 50mm = Area = 0.195 sqm
Face Velocity m/s Resistance Pa 100 0.6 1.2 200 1.1 3.2 300 1.6 7.1 400 2.54 12.2 500 2.6 18.3 600 3.4 26.2
Call 03 8405 3555 to discuss your project.
